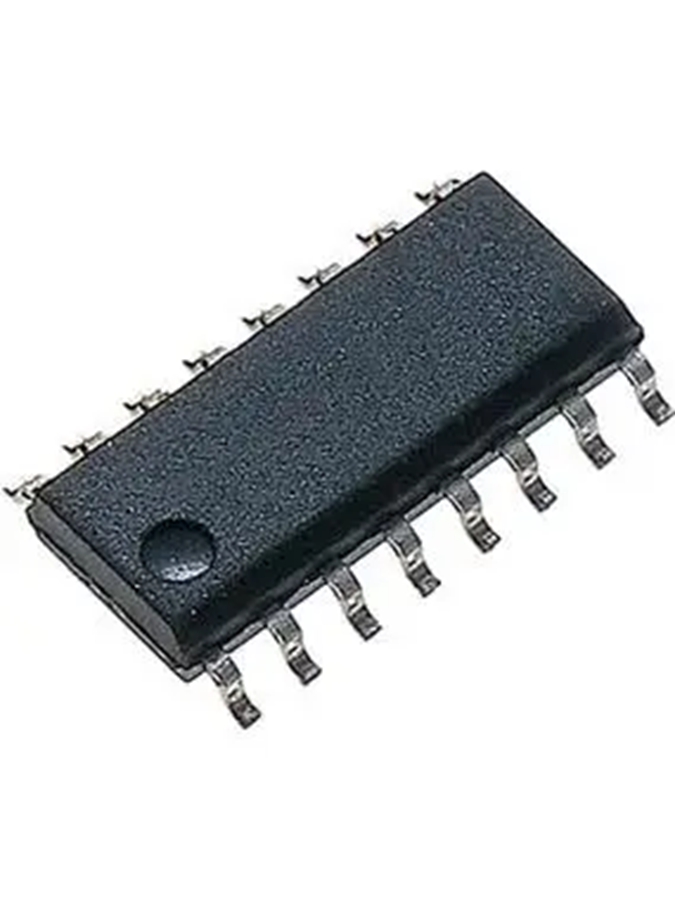

2.4gHz and bluetooth IC YC1026 SOP16

Name: 2.4gHz and bluetooth IC YC1026 SOP16
Brand: Shenzhen Duoyi Technology CO., Ltd.
Price: 10.0 USD
Availability: InStock

Price 10.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

2.4gHz and bluetooth IC YC1026 SOP16 Specification

Components
Contains RF Transceiver, Baseband, Interface logic

Processor Speed
Integrated baseband processor, up to 16MHz clock

Interface
SPI, UART, I2C

Input
Digital signal from MCU/Processor

Output
Bluetooth wireless signal, 2.4GHz RF signal

Features
Low power consumption, High data rate, Integrated protocol stack

Response Time
<2ms Pairing Response

Operating Temperature
-40C to +85C

Power Supply
DC

Usage
Bluetooth Communication Module

Power Source
DC Supply (from embedded system)

Product Type
Bluetooth RF IC

Application
Wireless Data Transfer, Bluetooth Devices, IoT Modules

Rated Voltage
3.3V (Typical)

Supply Voltage
2.4V~3.6V

Size
SOP16 Package

Dimension (L*W*H)
10.0mm x 6.0mm x 1.5mm (approximate)

Function
2.4GHz Wireless Communication, Bluetooth Data Transmission

Color
Black (IC Body)

Weight
Approximately 0.8g (per IC)

Current Rating
Typical TX: 12mA, RX: 10mA

Thickness
1.5mm (typical IC body)

Frequency
2.4GHz ISM Band

Package Type
SOP16

Modulation
GFSK (Gaussian Frequency Shift Keying)

Mounting Type
Surface Mount (SMD)

Number of Pins
16

Duty Cycle
Configurable

Bluetooth Version
Bluetooth 4.2/5.0 Compatible

Lead-Free Status
RoHS Compliant

ESD Protection
2kV HBM

Sensitivity
-90 dBm (typical)

Shielding
No onboard shielding

Communication Range
Up to 10 meters (open space)

RoHS Compliant
Yes

Data Rate
Up to 2 Mbps

Output Power
+4 dBm (max)

2.4gHz and bluetooth IC YC1026 SOP16 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Shenzhen

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
5000000000000 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
3000 pcs per package

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ROHS

About 2.4gHz and bluetooth IC YC1026 SOP16

The YC1026 is a very low power, high performance and highly integrated Bluetooth 3.0 BR/EDR solution,

designed for operation over the 2400MHz to 2483.5Mhz ISM frequency band.

YC1026 is manufactured using advanced 55nm CMOS low leakage process, which offers highest integration,

lowest power consumption, lowest leakage current and reduced BOM cost while simplifying the overall system

design. Rich peripherals including an 8 channel general purpose ADC, power-on-reset (POR), Arithmetic

Accelerators, USB2.0, 3axis Q-decoder, ISO7816, SPI/I2C and up to 32 GPIOs, which further reduce overall

system cost and size.

YC1026 operates with a power supply range from 1.8 to 5.5V and has very low power consumption in both

Tx and Rx modes, enabling long lifetimes in battery-operated systems while maintaining excellent RF

performance. The device can enter an ultra low power sleep mode in which the registers and retention memory

content are retained while low power Oscillator and sleep timer is ON. Different package from QFN4x4_32L

(YC1028, upto 17 GPIOs, for mouse application) to QFN7x7_56L (YC1026, upto 32 GPIOs, for keyboard applic

ation) is available.

Reliable Wireless Communication

Engineered for stable operation in the 2.4GHz ISM band, the YC1026 ensures dependable data transmission via Bluetooth and RF signals. The integrated protocol stack streamlines wireless communications for a variety of applications, from smart devices to industrial IoT deployments.

Flexible Integration and Performance

With support for SPI, UART, and I2C interfaces, this IC enables easy integration into existing embedded systems. The device operates on a 3.3V typical supply (range: 2.4V-3.6V), maintains low current consumption, and features response times below 2ms for efficient and prompt data exchanges. Its compact SOP16 package fits seamlessly into space-constrained designs.

FAQ's of 2.4gHz and bluetooth IC YC1026 SOP16:

Q: How can the YC1026 SOP16 IC be used in a wireless data transfer application?

A: To use the YC1026 in wireless data transfer, connect it to your main system using available interfaces such as SPI, UART, or I2C. It translates digital signals from an MCU or processor into Bluetooth or 2.4GHz wireless signals, supporting rapid transmission up to 2 Mbps across a 10-meter range.

Q: What are the benefits of using the YC1026 Bluetooth IC in IoT modules?

A: The YC1026 offers low power consumption, robust sensitivity, configurable duty cycle, and integrated protocol stacks, making it well-suited for IoT modules. These features enable long battery life, fast response times, and reliable wireless performance in varying environments.

Q: When should I choose this IC for my embedded system?

A: Choose the YC1026 when you need high-speed, reliable Bluetooth or 2.4GHz wireless communication with compact footprint, low power requirements, and broad compatibility across microcontroller interfaces. Its wide operating temperature and RoHS compliance make it ideal for industrial, automotive, and consumer applications.

Q: Where is the best environment to deploy the YC1026 IC?

A: The YC1026 performs optimally in open environments with minimal physical obstructions, given its communication range of up to 10 meters. Its broad operating temperature range allows deployment in both indoor and outdoor IoT systems, even under demanding conditions.

Q: What is the process for mounting the YC1026 SOP16 on a PCB?

A: The IC uses a surface mount package (SOP16), which can be affixed to printed circuit boards using standard SMD reflow soldering processes. Ensure proper handling and ESD precautions, as the device features a 2kV HBM ESD rating.

Q: How is data communication established and maintained with this IC?

A: Communication begins by pairing with compatible Bluetooth devices using integrated protocol stacks. Data is exchanged through the selected interface (SPI, UART, or I2C), with a typical pairing response time under 2 milliseconds, ensuring minimal delay in Bluetooth data exchanges.

Q: What are the key safety and compliance features of the YC1026?

A: The IC is RoHS compliant, lead-free, and includes 2kV HBM ESD protection to safeguard sensitive circuitry. These attributes ensure safe usage in a variety of products, meeting global environmental and safety standards.
