Optical sensor S8733

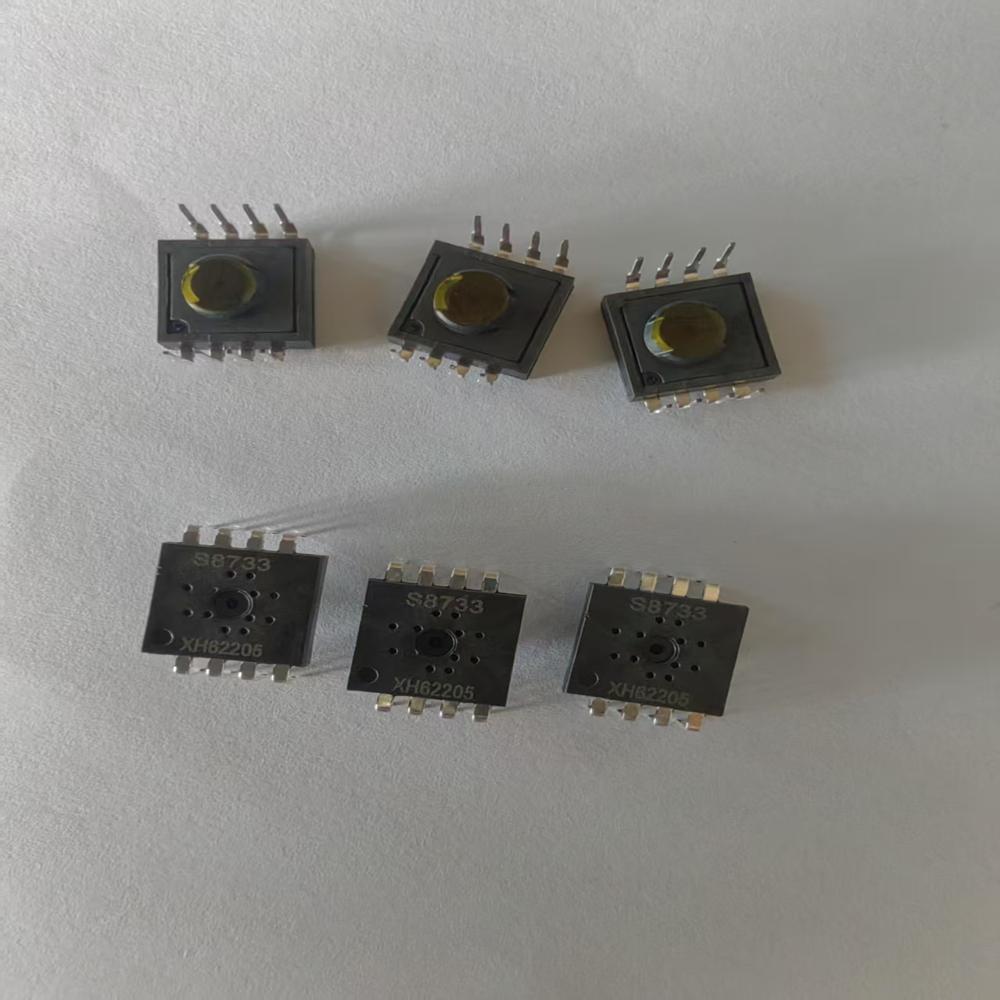

Name: Optical sensor S8733
Brand: Shenzhen Duoyi Technology CO., Ltd.
Price: 4.0 USD
Availability: InStock

Price 4.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 20 Pieces

Optical sensor S8733 Specification

Silkscreen
White

Soldermask
Green

Hole Size
0.3 mm

Impedance
Controlled

Board Type
FR4 PCB

Insulation Resistance
>100 M

Voltage Endurance
250V AC/min.

Min. Line Spacing
0.15 mm

Test
100% Electrical Testing

Min. Line Width
0.15 mm

Flame Resistance Level
UL94V-0

Product Type
Optical Sensor S8733

Base Material
FR4

Surface Finish
HASL (Lead-Free)

Copper Thickness
35 m

Board Thickness
1.6 mm

Color
Green

Panel Size
50 mm x 25 mm

Sensor Switch
Phototransistor Output

Electrical Components
Integrated Circuit, Resistors, Caps

Number Of Layers
2

Light Source
Infrared LED

Mounting Type
Through Hole

Output Type
NPN Open Collector

Operating Temperature Range
-25C to +85C

Application
Automation, Counting, Safety Equipment

RoHS Compliance
Yes

Response Time
< 1 ms

Detection Method
Photointerrupter

Sensing Distance
5 mm (typical)

Storage Temperature Range
-40C to +90C

Current Consumption
20 mA (max)

Connector Type
Plug-in

Operating Voltage
5V DC

Model Number
S8733

Optical sensor S8733 Trade Information

Minimum Order Quantity
20 Pieces

FOB Port
Shenzhen

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
50000000000 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
50 pcs per tube

Main Export Market(s)
North America, South America, Asia, Central America, Eastern Europe, Australia, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ROHS

About Optical sensor S8733

The S8733 chip is a low cost single chip optical mouse solution used to implement a

non-mechanical tracking engine for computer mice. It is based on optical navigation technology with

USB combo MCU bundled. Which measures changes in position by optically acquiring sequential

surface images(frames) and mathematically determining the direction and magnitude of movement.

The single chip optical mouse sensor provides a complete and compact mouse solution, There are no

moving parts, and precision optical alignment is not required, few outside components use and

facilitate high volume assembly. It is a true crystal-less and ultra low cost solution.

2. Features

Optical Navigation Technology

Low-cost and powerful solution for low-speed USB combo mouse

Universal Serial Bus Specification, version 2.0

USB HID Specification, version 1.1

USB-IF and WHQL compliable

5V Power Supply

Power Saving During No Motion

On Chip LED Drive with Regulated Current

Crystal-less

Resolution 1000CPI

Low EMI radiation

Supports 3D (X, Y, Z) input

Supports 4 buttons and mechanical wheel encoding

High-Performance Photointerrupter

The S8733 utilizes a photointerrupter detection method with an integrated infrared LED and phototransistor output, enabling rapid object detection within 1 ms. Its typical sensing distance of 5 mm makes it ideal for accurate and reliable measurements in automation and safety systems, minimizing false detection and optimizing productivity.

Robust Design and Versatility

Designed for through-hole mounting, the S8733 sensor features a green soldermask FR4 PCB with a white silkscreen and lead-free HASL finish. Its high electrical insulation and UL94V-0 flame resistance ensure dependable performance in a wide range of operating and storage temperatures, meeting rigorous industry standards.

Quality Assurance and Compliance

Each S8733 is subjected to 100% electrical testing to guarantee operational excellence and durability. The product is also RoHS compliant, underscoring its commitment to environmentally responsible manufacturing and use in global markets requiring strict regulatory adherence.

FAQ's of Optical sensor S8733:

Q: How does the S8733 optical sensor detect objects?

A: The S8733 employs a photointerrupter detection method, where an infrared LED emits light across a gap. When an object interrupts the light path, the built-in phototransistor detects the change, triggering the sensor's output response.

Q: What applications are best suited for the S8733 sensor?

A: This sensor excels in automation, counting, and safety equipment applications due to its fast response, high reliability, and robust construction, making it ideal for use in manufacturing lines, safety interlocks, and inventory systems.

Q: When should I choose the S8733 over other optical sensors?

A: Choose the S8733 when you require a compact, through-hole mounted sensor with a 5 mm sensing distance, rapid response time under 1 ms, NPN open collector output, and reliable performance across diverse temperature ranges.

Q: Where can the S8733 sensor be installed?

A: The S8733 is designed for through-hole mounting on FR4 PCBs, making it suitable for installation in control panels, automated machinery, counters, and other electronics requiring precise object detection.

Q: What is the process for wiring and connecting this optical sensor?

A: Simply plug in the connector to interface the sensor with your control circuit. For output, the NPN open collector can be connected to your system's input. Ensure a 5V DC supply and check for correct alignment in the optical detection path.

Q: How does using the S8733 benefit my automation system?

A: The S8733 delivers precise, rapid detection and low power consumption, reducing downtime and increasing throughput in automated processes. Its durability and full electrical testing ensure long lifespan and minimal maintenance.
