High Performance Low Power BLE 5.4 SoC YC1011-S SOP16

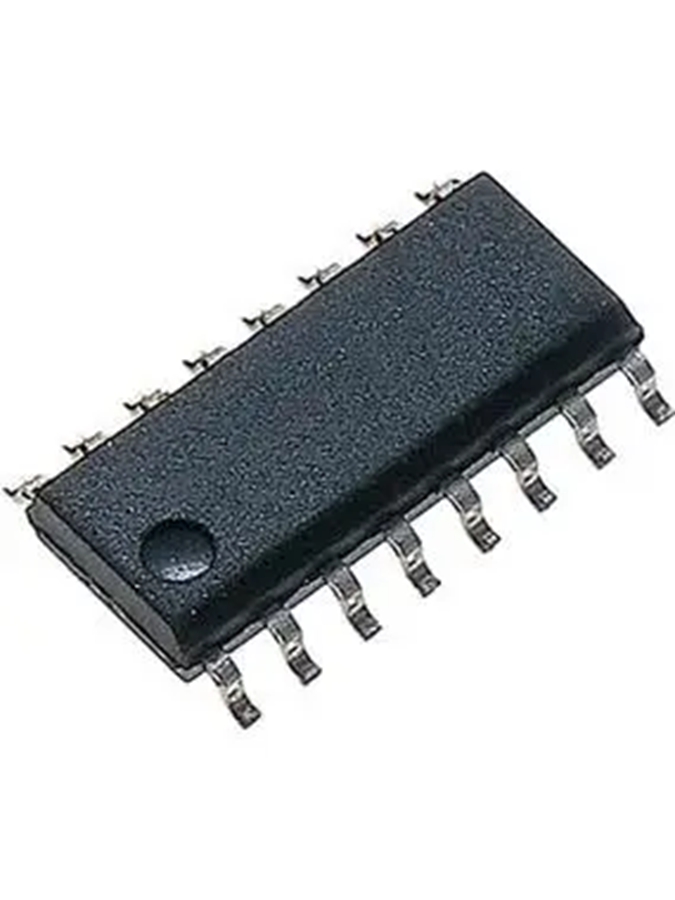

Name: High Performance Low Power BLE 5.4 SoC YC1011-S SOP16
Brand: Shenzhen Duoyi Technology CO., Ltd.
Price: 10.0 USD
Availability: InStock

Price 10.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

High Performance Low Power BLE 5.4 SoC YC1011-S SOP16 Specification

Response Time
<2ms connection interval

Display Type
No display (IC component)

Interface
UART, I2C, SPI, PWM, ADC, GPIO

Operating Temperature
-40C to +85C

Output
BLE wireless signals, GPIO output

Processor Speed
Up to 64MHz

Components
Integrated Bluetooth controller, RF transceiver, MCU core, SRAM, PMU

Power Source
Battery or external DC via host PCB

Features
Bluetooth 5.4 compliant, low power, high frequency stability, SOP16 package, integrated security

IP Rating
N/A (component level)

Input
Digital/Analog signals

Thermal Conductivity
Standard IC rating

Sensors Specification
Supports external sensors via I2C/SPI

Power Supply
External DC supply

Usage
Bluetooth 5.4 wireless applications, IoT devices, smart gadgets

Product Type
Bluetooth Low Energy 5.4 SoC

Application
IoT, industrial control, smart home, wireless communication

Rated Voltage
3.3V (typical)

Supply Voltage
1.8V to 3.6V

Size
Standard SOP16 footprint

Dimension (L*W*H)
10.3 x 5.5 x 1.6mm

Function
Bluetooth Low Energy SoC; wireless data communication

Color
Black (package body)

Weight
~0.5g (SOP16 IC)

Thickness
Approx. 1.6mm

Capacity
Depends on external flash/EEPROM

Current Rating
Peak RX/TX < 8mA, sleep < 1uA

Frequency
2.4 GHz ISM band

ESD Protection
2kV HBM

Package Type
SOP16 (Dual in-line)

Flash Memory
Support for external flash

Modulation Technique
GFSK, 2Mbps/1Mbps/500kbps/125kbps PHY

Rx Sensitivity
-98 dBm (at 1Mbps)

Tx Power
+4 dBm maximum output

RAM
64KB SRAM (on-chip)

RoHS Compliance
Yes

Security
AES-128 encryption engine

Firmware Upgrade
OTA supported

Development Support
SDK and reference designs available

High Performance Low Power BLE 5.4 SoC YC1011-S SOP16 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Shenzhen

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
500000 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
3000 pcs per package

Main Export Market(s)
Middle East, Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
ROHS

About High Performance Low Power BLE 5.4 SoC YC1011-S SOP16

The YC1011-S is a high performance, low power System-on-Chip (SoC) integrating a Bluetooth 5.4 compliant

2.4-GHz transceiver, 24 MHz proprietary 32 bit MCU with a RAM of 8 KB and a One-Time Programmable (OTP)

memory of 8KB .

The YC1011-S supports Bluetooth Low Energy and Bluetooth 5.4 features including high-throughput 2 Mbps,

Long Range and the Direction Finding. It can be paired through HCI interface with a more powerful MCU for

applications requiring advanced wireless connectivity.

The fully-featured multiprotocol radio, +8 dBm output power, -96.5 dBm sensitivity and extended temperature

range of -40 to 125C makes it suitable for lighting applications.

The YC1011-S features built-in USB, proprietary 32-bit MCU clocked at 24 MHz, integrated capless LDOs

supporting 1.6-5.5V supply range, making it a perfect microcontroller for cost-sensitive applications.

Advanced Wireless Communication

The YC1011-S supports Bluetooth 5.4, providing reliable wireless transmission with multiple PHY data rates up to 2Mbps. Its powerful RF transceiver and Bluetooth controller ensure stable connections for IoT and smart device applications operating in the 2.4 GHz ISM band.

Low Power Consumption and Efficiency

Designed for battery-powered and embedded applications, the YC1011-S operates with peak RX/TX current under 8mA and sleep mode below 1uA. This ensures minimal power usage in always-on or intermittently connected devices, making it ideal for long-lasting IoT deployments.

Robust Security Integration

Equipped with a built-in AES-128 encryption engine, the SoC provides strong protection for transmitted wireless data. Device integrity and user privacy are maintained, meeting the security needs of both industrial and consumer wireless applications.

FAQ's of High Performance Low Power BLE 5.4 SoC YC1011-S SOP16:

Q: How can I integrate the YC1011-S SoC into my IoT project?

A: Integration is straightforward due to its standard SOP16 footprint and multiple interfaces, including UART, I2C, SPI, PWM, ADC, and GPIO. You can connect external components, sensors, and memory using these interfaces. SDKs and reference designs are available for quick development.

Q: What benefits does the Bluetooth 5.4 compliance of YC1011-S offer?

A: Bluetooth 5.4 compliance provides faster data rates, improved range, and robust connectivity. Combined with GFSK modulation and multiple PHY rates, it supports a wide array of wireless applications, ensuring your devices communicate reliably and efficiently.

Q: When should I use external flash memory with this SoC?

A: External flash memory is recommended when your application requires additional storage for firmware, user data, or OTA firmware updates. The SoC supports connection to external flash devices, offering expanded capacity as needed by your application.

Q: Where can the YC1011-S be deployed effectively?

A: The SoC is ideal for IoT environments, industrial control systems, smart home devices, and wireless sensor nodes. Its wide operating temperature range and robust wireless performance make it suitable for both indoor and outdoor conditions.

Q: What is the process for updating firmware on the YC1011-S?

A: Firmware upgrades are supported over the air (OTA), allowing you to update devices remotely without physical access. The process uses wireless communication to securely deliver and install new firmware versions.

Q: How does the YC1011-S ensure secure wireless communication?

A: The SoC features an integrated AES-128 encryption engine. All data transmitted over BLE is encrypted, protecting against unauthorized access and ensuring data integrity during communication.

Q: What advantages does the low power design of the YC1011-S bring?

A: Its low power consumption-with peak RX/TX current under 8mA and sleep mode below 1uA-enables longer battery life, reduced maintenance, and suitability for compact or battery-powered devices in continuous or intermittent operation.
