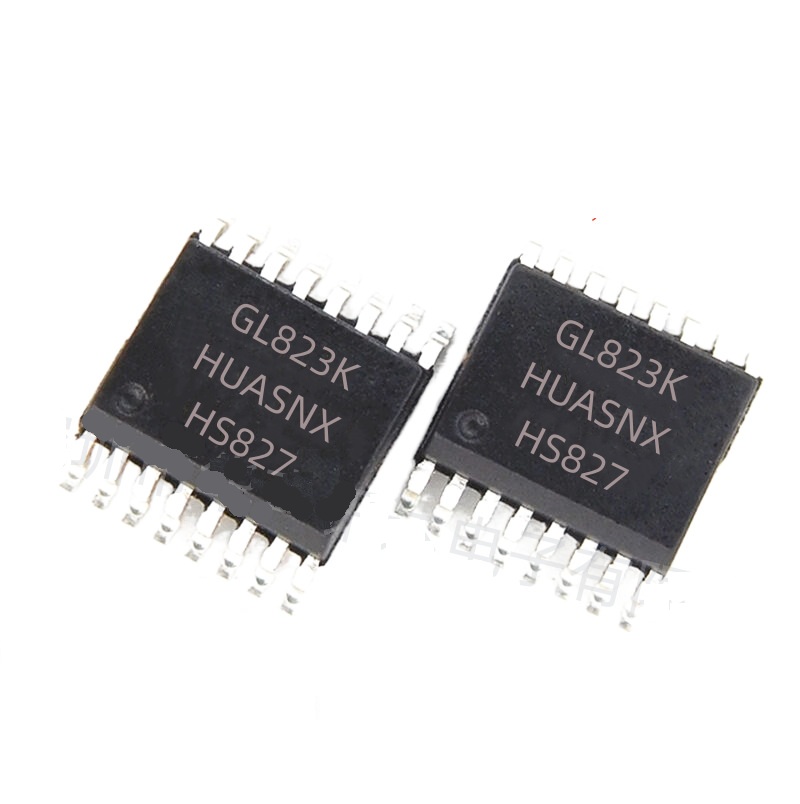

HS827 GL832K TSSOP-16 USB 2.0 card reader IC HUB card reader controller

Name: HS827 GL832K TSSOP-16 USB 2.0 card reader IC HUB card reader controller
Brand: Shenzhen Duoyi Technology CO., Ltd.
Price: 4.0 USD
Availability: InStock

Price 4.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

HS827 GL832K TSSOP-16 USB 2.0 card reader IC HUB card reader controller Specification

Board Type
SMD IC (for PCB Mounting)

Min. Line Width
---

Insulation Resistance
---

Hole Size
---

Min. Line Spacing
---

Test
Functional Electrical Testing

Impedance
---

Flame Resistance Level
---

Silkscreen
Printed on IC housing

Soldermask
---

Voltage Endurance
---

Product Type
USB 2.0 Card Reader IC HUB Controller

Base Material
Semiconductor, Plastic

Surface Finish
IC Plastic Encapsulation

Copper Thickness
---

Board Thickness
---

Color
Black (IC Package)

Panel Size
---

Sensor Switch
---

Electrical Components
GL832K Controller Chip, USB Interface Pins

Number Of Layers
---

Maximum Data Rate
480 Mbps (High-Speed USB 2.0)

Operating Voltage
3.3V (typical)

Temperature Range
-40C to +85C (typical)

EEPROM Support
External EEPROM supported for device configuration

ESD Protection
Built-in (up to 2kV HBM)

IC Package
TSSOP-16

Controller Brand
Genesys Logic

Pin Count
16 pins

RoHS Compliant
Yes

Model Number
HS827 GL832K

USB Version
USB 2.0

Mounting Type
Surface Mount (SMD)

Applications
USB card readers, multi-card reader hubs, embedded USB peripherals

HS827 GL832K TSSOP-16 USB 2.0 card reader IC HUB card reader controller Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Shenzhen

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
50000000 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
4000 pcs per package

Main Export Market(s)
Middle East, Asia, Australia, Central America, North America, South America, Africa, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
ROHS

About HS827 GL832K TSSOP-16 USB 2.0 card reader IC HUB card reader controller

HS827 is a USB 2.0 single lun card reader controller that supports SD/MMC/MSPRO Flash memory cards.

HS827 complies with the Universal Serial Bus specification revision 2.0, USB storage class 1.0 specification, and various flash card interface specifications.

This product integrates high-speed 8051 microprocessor and efficient hardware engine for data transfer performance between USB and flash card interfaces.

Its pin allocation design is suitable for card sockets to provide easier PCB layout.

The chip integrates 5V to 3.3V regulators, 3.3V to 1.8V regulators, and power MOSFETs, which enable on-chip clock source (OCCS) functionality. This means that no external 12MHz XTAL is necessary, effectively reducing the total BOM cost.

Domestic self sealing TSSOP-16, can replace GL823K, pin to pin, no need to modify board, ready to use on board

Reliable USB Card Reader Controller

The HS827 GL832K provides dependable, high-speed USB 2.0 connectivity for a range of applications, including multi-format card readers and USB hubs. Its robust design and built-in ESD protection make it an excellent choice for both consumer and industrial embedded systems where data transfer reliability matters.

Flexible Design and Configuration Options

Supporting external EEPROM, the controller allows device configuration to meet specific application needs. Its surface-mount TSSOP-16 package enables easy integration into compact, multilayer PCB designs, making it suitable for both new development and retrofit projects.

FAQ's of HS827 GL832K TSSOP-16 USB 2.0 card reader IC HUB card reader controller:

Q: How is the HS827 GL832K typically integrated into electronic designs?

A: The HS827 GL832K is typically integrated onto printed circuit boards (PCBs) as a surface-mount device (SMD) using its TSSOP-16 package. It can serve as the main controller in USB 2.0 card readers or multi-slot hubs, and is connected to an external EEPROM for configuration if needed.

Q: What are the key benefits of using the HS827 GL832K controller in USB card reader applications?

A: The controller provides high-speed data transfer (up to 480 Mbps), built-in ESD protection up to 2kV HBM, flexible configuration with external EEPROM support, and wide temperature tolerance, making it reliable for a broad range of operational environments.

Q: Where can I use the HS827 GL832K?

A: This controller is suitable for use in USB card readers, multi-card reader hubs, and embedded USB peripherals requiring dependable USB 2.0 connectivity. Its temperature tolerance and RoHS compliance make it ideal for industrial, consumer, and commercial products.

Q: What is the process for configuring the HS827 GL832K for my application?

A: The HS827 GL832K supports external EEPROM, which enables device-specific configuration. During board assembly, the EEPROM is programmed with the desired configuration, and the controller reads these settings on startup for tailored functionality.

Q: When should I choose the HS827 GL832K over other USB card reader controllers?

A: Select the HS827 GL832K when you require a compact, high-speed USB 2.0 controller with robust ESD protection, low operating voltage, reliable performance across broad temperatures, and flexible configuration for embedded or hub applications.

Q: How does the onboard ESD protection benefit my design?

A: The built-in ESD protection safeguards the IC and connected circuitry from electrostatic discharge events, enhancing product reliability and reducing the risk of field failures.
