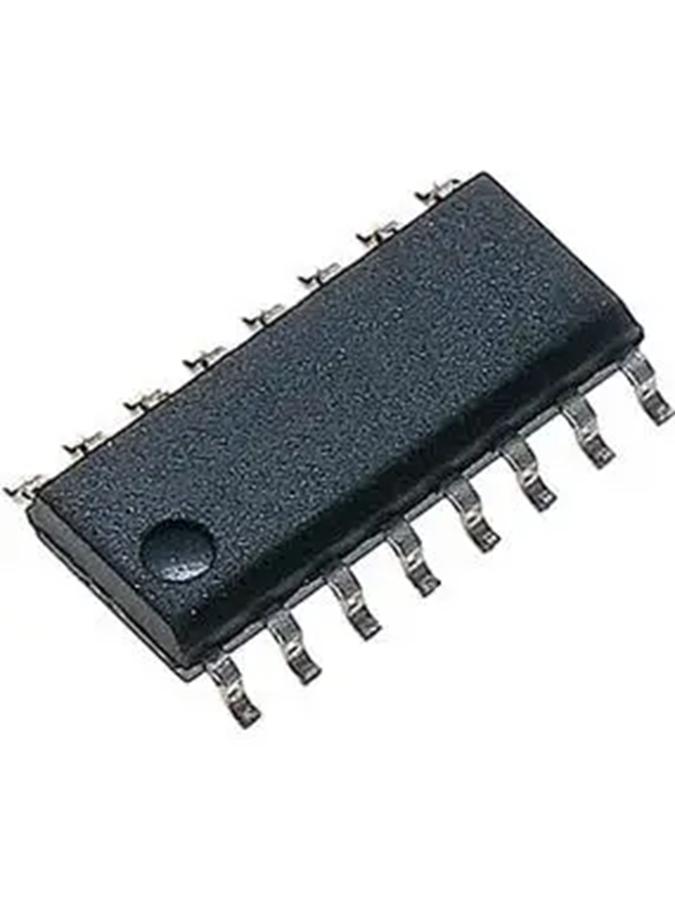

High Performance Low Power BR/BLE 5.2 SoC YC1028-A SOP16

Name: High Performance Low Power BR/BLE 5.2 SoC YC1028-A SOP16
Brand: Shenzhen Duoyi Technology CO., Ltd.
Price: 10.0 USD
Availability: InStock

Price 10.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

High Performance Low Power BR/BLE 5.2 SoC YC1028-A SOP16 Specification

Components
Integrated CPU, RAM, flash, RF transceiver

Power Source
External DC supply

Processor Speed
32-bit MCU @ 48 MHz

Operating Temperature
-40C to +85C

Response Time
Ultra-low latency, BLE standard compliant

Features
Bluetooth 5.2 dual mode (BR/EDR + BLE), low power consumption, integrated stack

Usage
Bluetooth-enabled devices, IoT modules, wireless communication

IP Rating
None (IC package)

Sensors Specification
External sensors supported via GPIO/I2C/SPI

Interface
UART, I2C, SPI, PWM, GPIO

Thermal Conductivity
Standard QFN/SOP package (thermal pad optional)

Input
Digital & analog input pins

Output
UART, PWM, GPIO, I2C, SPI

Power Supply
DC

Product Type
Bluetooth 5.2 SoC (System on Chip)

Application
Smart Home, Wearables, Industrial Automation, BLE/Bluetooth Data Modules

Rated Voltage
3.3V

Supply Voltage
2.0V - 3.6V

Size
SOP16 standard

Dimension (L*W*H)
10.3mm 7.56mm 1.4mm

Function
Bluetooth wireless data transmission and control SoC

Color
Black (IC package)

Weight
~0.5g (approx. for SOP16)

Thickness
1.4mm (typical SOP16 body)

Capacity
Supports up to 8 simultaneous connections

Current Rating
Tx: 6.5mA, Rx: 6.3mA (typ.)

Frequency
2.402 - 2.480 GHz

Transmit (Tx) Power
+4dBm (typ., programmable)

Development Support
SDK, reference hardware design, AT command set

Firmware Upgrade
Supported via UART/OTA

Encryption
AES128/CMAC hardware accelerators

Memory
128KB Flash, 16KB SRAM

Bluetooth Version
BR/EDR + Bluetooth Low Energy (BLE) 5.2

Low Power Modes
Deep Sleep, Standby

ESD Protection
HBM 2kV

RoHS Status
Compliant

Receiver Sensitivity
-97dBm (BLE mode, typical)

Antenna Interface
On-chip balun, external antenna support

Package Type
SOP16 (Small Outline Package 16-pin)

Modulation Scheme
GFSK, /4-DQPSK, 8DPSK

Typical Applications
Wireless data acquisition, HID devices, health trackers, BLE mesh networks

High Performance Low Power BR/BLE 5.2 SoC YC1028-A SOP16 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Shenzhen

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
500000 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
3000 pcs per package

Main Export Market(s)
Asia, South America, Eastern Europe, Middle East, Africa, Australia, Central America, Western Europe, North America

Main Domestic Market
All India

Certifications
ROHS

About High Performance Low Power BR/BLE 5.2 SoC YC1028-A SOP16

The YC1028-A is a high performance, low power System-on-Chip (SoC) integrating a Bluetooth 5.2 compliant

2.4-GHz transceiver, 24 MHz proprietary 32 bit MCU with a RAM of 16 KB and a One-Time Programmable (OTP)

memory of 8KB .

The YC1028-A supports Bluetooth Basic Rate, Bluetooth Low Energy and Bluetooth 5.2 features including high

throughput 2 Mbps, Long Range and the Direction Finding. It can be paired through HCI interface with a more

powerful MCU for applications requiring advanced wireless connectivity.

The fully-featured multiprotocol radio, +10 dBm output power, -99 dBm sensitivity and extended temperature

range of -40 to 110C makes it suitable for lighting applications.

The YC1028-A features built-in USB, proprietary 32-bit MCU clocked at 24 MHz, integrated capless LDOs

supporting 2.1-5.5V supply range, making it a perfect microcontroller for cost-sensitive applications such as

mouse devices, toys and disposables.

Versatile Dual-Mode Bluetooth Connectivity

The YC1028-A SoC seamlessly combines BR/EDR and BLE 5.2 for flexible use in a broad range of wireless applications. From real-time data control to reliable device pairing, its advanced modulation and low latency response make it suitable for both classic and modern Bluetooth-enabled products.

Optimal Power Consumption for Battery-Powered Devices

Engineered for low power operation, the chip supports deep sleep and standby modes while preserving high performance. With typical Tx/Rx currents at just 6.5/6.3 mA, it's ideally suited for battery-powered devices like health trackers and wireless sensors, allowing for long-lasting operation without frequent recharging.

Rich Integration and Security Features

The on-chip balun enables direct antenna connection, while multiple digital/analog interfaces (UART, I2C, SPI, GPIO, PWM) provide broad compatibility with sensors and peripherals. AES128/CMAC encryption hardware enhances security, essential for safeguarding sensitive data in IoT and industrial automation environments.

FAQ's of High Performance Low Power BR/BLE 5.2 SoC YC1028-A SOP16:

Q: How do I update the firmware on the YC1028-A SoC?

A: Firmware upgrades are supported via UART or over-the-air (OTA) methods, making it convenient to deploy updates and security patches without physical access to the device.

Q: What are the recommended applications for the YC1028-A?

A: The YC1028-A is versatile, commonly used in smart home systems, wearable tech, health monitoring devices, industrial automation, BLE mesh networks, and Bluetooth data modules due to its dual-mode connectivity and efficient power usage.

Q: When should I use the YC1028-A in my project?

A: Consider the YC1028-A when you require secure, energy-efficient Bluetooth communication with support for simultaneous BR/EDR and BLE connections, particularly in devices that need compact size and robust wireless performance.

Q: Where can I connect external sensors or peripherals on the YC1028-A?

A: External sensors and peripherals can be interfaced using the chip's GPIO, I2C, and SPI pins. This allows easy integration with various input and output devices to expand your product's functionality.

Q: What is the process for developing with this SoC?

A: Development is streamlined with an available SDK, reference hardware designs, and comprehensive documentation. Developers can also use the AT command set for quick integration or advanced custom applications.

Q: How does the integrated encryption benefit my application?

A: The built-in AES128/CMAC encryption hardware ensures secure wireless communication, which is critical for protecting sensitive user data-especially in health, industrial, and smart home environments.
