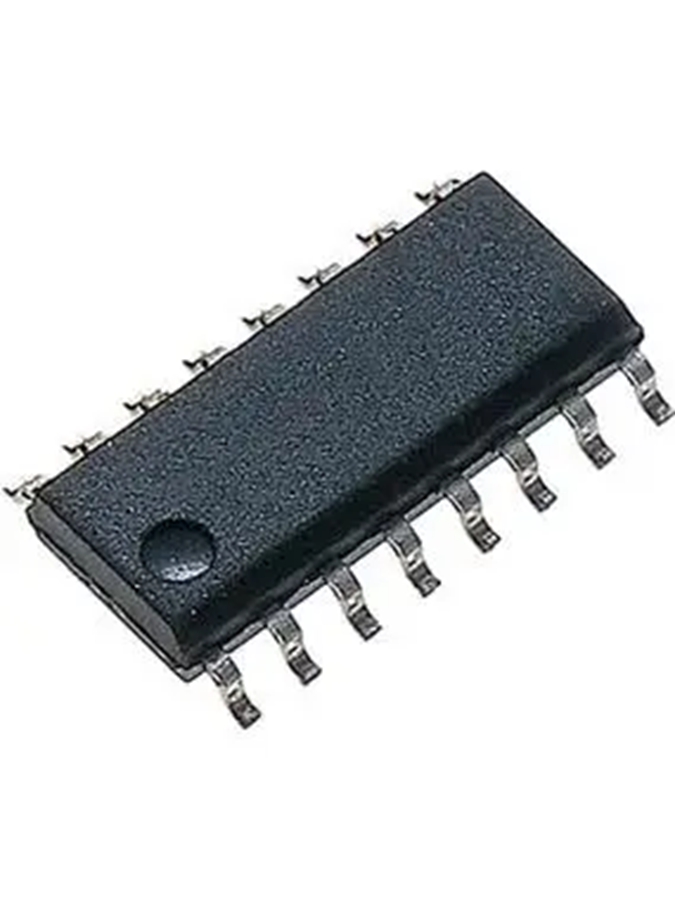

High Performance Low Power BR/BLE 5.2 SoC YC1011-T SOP16

Name: High Performance Low Power BR/BLE 5.2 SoC YC1011-T SOP16
Brand: Shenzhen Duoyi Technology CO., Ltd.
Price: 10.0 USD
Availability: InStock

Price 10.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

High Performance Low Power BR/BLE 5.2 SoC YC1011-T SOP16 Specification

Response Time
Low latency, <10ms (BLE typical)

Output
Digital Output, BLE/Bluetooth RF Signal

Interface
UART, I2C, SPI, PWM, GPIO

Sensors Specification
External sensor interfaces supported via I2C/SPI

Processor Speed
32-bit MCU, up to 48MHz

Components
1 x YC1011-T SoC in SOP16 package

Power Source
External DC supply

Power Supply
DC

IP Rating
Not rated

Features
Support for Bluetooth 5.2, BLE & BR/EDR, ultra-low power consumption, secure encryption

Operating Temperature
-40C to +85C

Usage
Bluetooth-enabled devices, IoT modules, wireless communication

Thermal Conductivity
Standard IC dissipation

Input
Digital/Analog Input via GPIOs

Product Type
Bluetooth BR/BLE SoC

Application
Bluetooth Modules, Smart Home, IoT, Wearables

Rated Voltage
3.3V

Supply Voltage
1.8V to 3.6V

Size
SOP16 Package

Dimension (L*W*H)
10.3mm x 7.5mm x 1.8mm

Function
High Performance Low Power Bluetooth Radio (BR/BLE) SoC

Color
Black

Weight
1.2g (typical)

Capacity
256KB Flash, 48KB SRAM

Current Rating
Peak RX: 8.2mA; Peak TX: 8.6mA

Thickness
1.8mm (approximate)

Frequency
2.4GHz ISM Band

Lead-free
Yes

Receiver Sensitivity
-97 dBm (BLE) typical

MTBF
>1,000,000 hours

Development Support
SDK and Reference Designs available

Firmware Upgrade
Supports OTA (Over-the-Air) updates

Transmit Power
+4 dBm max

RoHS Compliance
Yes

Package Type
SOP16

Security Features
AES-128 Encryption, Secure Boot

RoHS Status
Compliant

Serial Number
YC1011-T

Bluetooth Version
BR/EDR + BLE 5.2 compliant

GPIOs
Up to 16 programmable GPIOs

Antenna Interface
On-chip Balun, External antenna supported

High Performance Low Power BR/BLE 5.2 SoC YC1011-T SOP16 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Shenzhen

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
5000000 Pieces Per Month

Delivery Time
1 Week

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
3000 pcs per package

Main Export Market(s)
Central America, North America, South America, Eastern Europe, Western Europe, Asia, Australia, Africa, Middle East

Main Domestic Market
All India

Certifications
ROHS

About High Performance Low Power BR/BLE 5.2 SoC YC1011-T SOP16

The YC1011-T is a high performance, low power System-on-Chip (SoC) integrating a Bluetooth 5.2 compliant

2.4-GHz transceiver, 24 MHz proprietary 32 bit MCU with a RAM of 12 KB and eFuse of 512 bits.

The YC1011-T supports Bluetooth Basic Rate, Bluetooth Low Energy and Bluetooth 5.2 features including high

throughput 2 Mbps, Long Range and the Direction Finding. It can be paired through HCI interface with a more

powerful MCU for applications requiring advanced wireless connectivity.

The fully-featured multiprotocol radio, +12 dBm output power, -99 dBm sensitivity and extended temperature

range of -40 to 110C makes it suitable for lighting applications.

The YC1011-T features built-in USB, proprietary 32-bit MCU clocked at 24 MHz, integrated capless LDOs

supporting 1.7-5.5V supply range, making it a perfect microcontroller for cost-sensitive applications such as

mouse devices, toys and disposables.

Advanced Connectivity for Next-Gen Applications

The YC1011-T SoC brings robust Bluetooth 5.2 support, both BR/EDR and BLE modes, to a wide array of applications. Its flexible antenna interface, extensive GPIO availability, and reliable wireless performance allow seamless integration into smart home products, IoT modules, and wearables. Whether in consumer electronics or industrial solutions, its versatility delivers trusted, high-quality Bluetooth communication.

Secure and Reliable Wireless Communication

Outfitted with AES-128 encryption and a secure boot process, the YC1011-T prioritizes data protection. This robust security ensures safe operation for sensitive applications, while RoHS compliance and a lead-free build demonstrate its eco-friendly design. The long MTBF underscores proven dependability, making it suitable for mission-critical deployments.

Developer-Friendly and Easily Customizable

The SOP16 package design incorporates up to 16 programmable GPIOs, support for digital/analog inputs, and interface options like UART, I2C, SPI, and PWM. Comprehensive SDKs, OTA firmware updates, and reference designs accelerate development and deployment, fostering innovation for developers and manufacturers alike.

FAQ's of High Performance Low Power BR/BLE 5.2 SoC YC1011-T SOP16:

Q: How can I integrate the YC1011-T SoC into my IoT or Bluetooth-enabled device?

A: The YC1011-T supports integration via standard interfaces such as UART, I2C, SPI, PWM, and up to 16 GPIOs. Its SOP16 package and external sensor support (I2C/SPI) make it straightforward to embed in custom hardware designs. Developers can use the provided SDK and reference designs for efficient implementation.

Q: What power supply requirements and voltage range does the YC1011-T operate within?

A: The device operates on a DC power supply with a rated voltage of 3.3V and supports a supply voltage range between 1.8V and 3.6V, making it suitable for battery-powered and embedded applications with variable power sources.

Q: When should I utilize the OTA firmware update capability of the YC1011-T?

A: OTA (Over-the-Air) firmware upgrades are recommended whenever new features, patches, or security updates are available. This feature allows remote updating of devices post-deployment, minimizing downtime and ensuring seamless operation without requiring physical access.

Q: Where is the YC1011-T most beneficially applied?

A: The YC1011-T excels in Bluetooth modules, smart home devices, IoT applications, and wearables, especially where low power consumption and reliable wireless connectivity are priorities. Its extended temperature range and strong RF performance make it suitable for both consumer and industrial environments.

Q: What are the key benefits of using the YC1011-T for wireless communication?

A: With Bluetooth 5.2 compliance, low power operation, robust AES-128 security, and flexible hardware interfaces, the YC1011-T ensures efficient, secure, and dependable connectivity. Its OTA update support and long-life MTBF further enhance device life cycle management and reduce maintenance overhead.

Q: How does the YC1011-T address security concerns in wireless applications?

A: The SoC includes AES-128 encryption and secure boot features, providing encrypted communication and protection against unauthorized firmware changes. This focus on security helps safeguard data and ensures device trustworthiness in connected environments.

Q: What process should be followed to leverage development support for the YC1011-T?

A: Begin by accessing the vendor-provided SDK and reference designs, which offer project templates, libraries, and documentation. This streamlines hardware and firmware integration, and enables rapid prototyping, reducing time to market for your Bluetooth-enabled solution.
